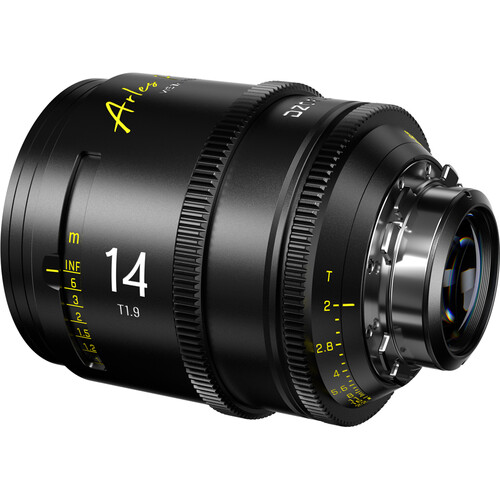

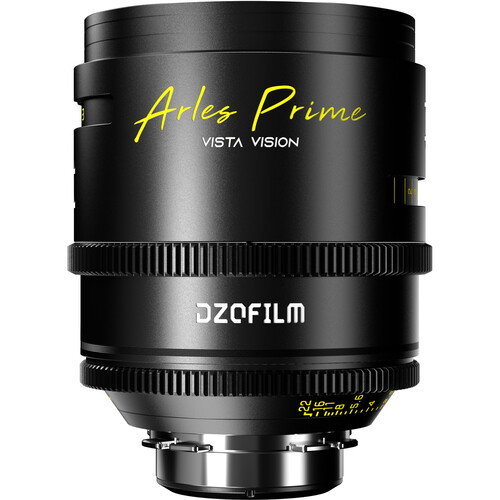

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (PL Mount)
| Attribute | Specification |
|---|---|
| Focal Length | 14mm |
| Aperture | T1.9 – T22 |
| Image Circle | φ46.5mm (FF/VV) |
| Field of View | 109° diagonal |
| Focus Rotation | 270° |
| Iris Blades | 16 |
| Filter Thread | N/A (95mm front) |
| Mount | PL (EF optional) |
| Weight | 1.65kg (3.64lbs) |
KSh 360,000.00
Guaranteed Safe Checkout
Description
Inspired by the luminous landscapes of Arles, France, the DZOFilm Arles 14mm T1.9 is an ultra-wide cine prime designed for full-frame and large-format sensors. With T1.9 brightness, a 109° diagonal field of view, and advanced optical corrections, it’s ideal for epic landscapes, immersive POV shots, and tight interior scenes.
Key Features
✅ T1.9 Fast Aperture – Strong low-light performance with cinematic depth.
✅ Ultra-Wide 14mm Focal Length – 109° diagonal field of view for expansive framing.
✅ Full-Frame/Vista Vision Coverage – 46.5mm image circle (no vignetting).
✅ 16-Blade Iris – Smooth, circular bokeh despite ultra-wide perspective.
✅ 270° Focus Rotation – Precision manual control for cine workflows.
✅ Interchangeable Mounts – PL mount included (EF available separately).
✅ Advanced Optical Design – Two aspherical elements minimize distortion.
✅ Cine-Ready Mechanics – 0.8MOD gears, 95mm front diameter.
Technical Specifications
Focal Length: 14mm
Aperture Range: T1.9 – T22
Image Circle: φ46.5mm (covers VV/FF sensors)
Optics: 15 elements in 12 groups (including 2 aspherical elements).
Angle of View: 109° diagonal / 72° horizontal / 116° vertical.
Focus Rotation: 270°
Iris Rotation: 65° (manual)
Close Focus: 0.28m (11″)
Front Diameter: 95mm (no threaded filter compatibility)
Gear Pitch: 0.8MOD (focus/iris)
Weight: ≈1.65kg (3.64lbs)
Mounts: PL (52mm flange) / EF (44mm flange, optional)
Optical Excellence
Minimal Distortion: Aspherical elements correct wide-angle aberrations.
Natural Bokeh: 16-blade diaphragm for smooth out-of-focus rendering.
Color Consistency: ~5000K white balance across the Arles series.
Flare Control: Blue nano-coating reduces ghosting and stray light.
Included Accessories
✔ Arles 14mm T1.9 PL Mount Lens
✔ Front & Rear Lens Caps
✔ Limited 1-Year Warranty
Why Choose This Lens?
🎬 Epic Framing – Captures vast landscapes and dynamic architectural shots.
🎥 Low-Light Prowess – T1.9 aperture excels in dimly lit environments.
🔧 Cine-Smooth Operation – Durable build with dampened focus/iris rings.
Ideal For
Large-Format Cinema – Covers Vista Vision and Alexa 65 sensors.
Documentary & Travel – Expansive environmental storytelling.
Gimbal/Drone Work – Lightweight (1.65kg) for stabilized rigs.
Push creative boundaries with the DZOFilm Arles 14mm T1.9—an ultra-wide prime built for cinematic scale and optical precision.
