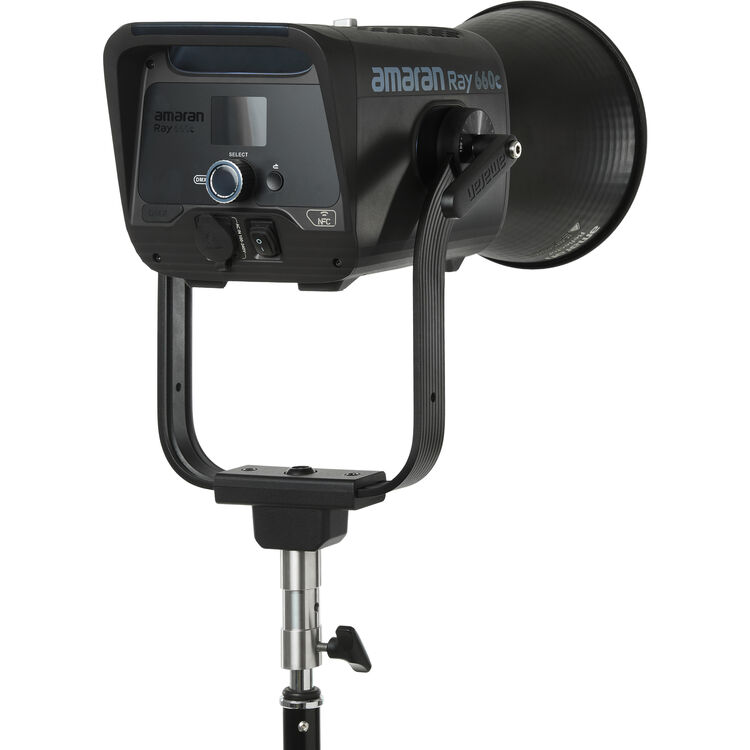

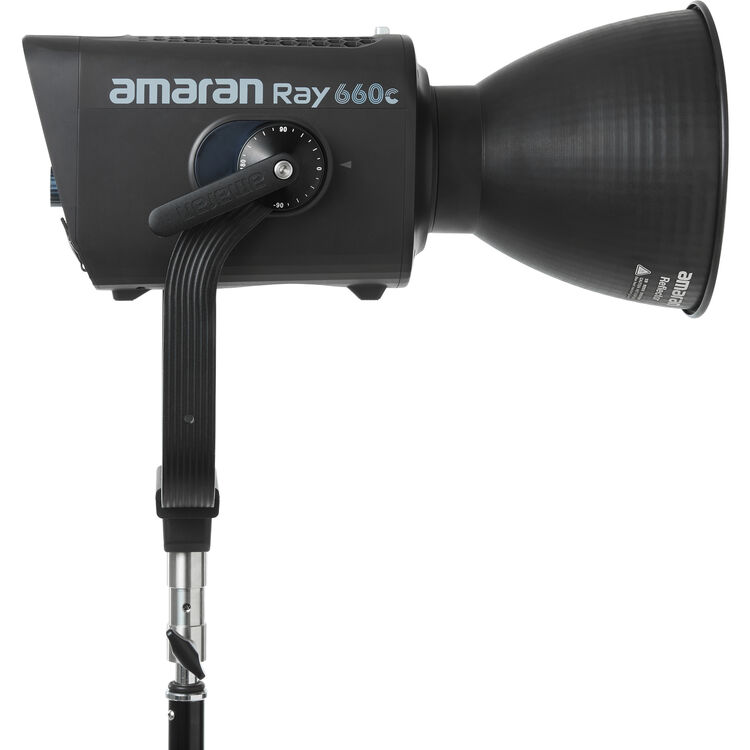

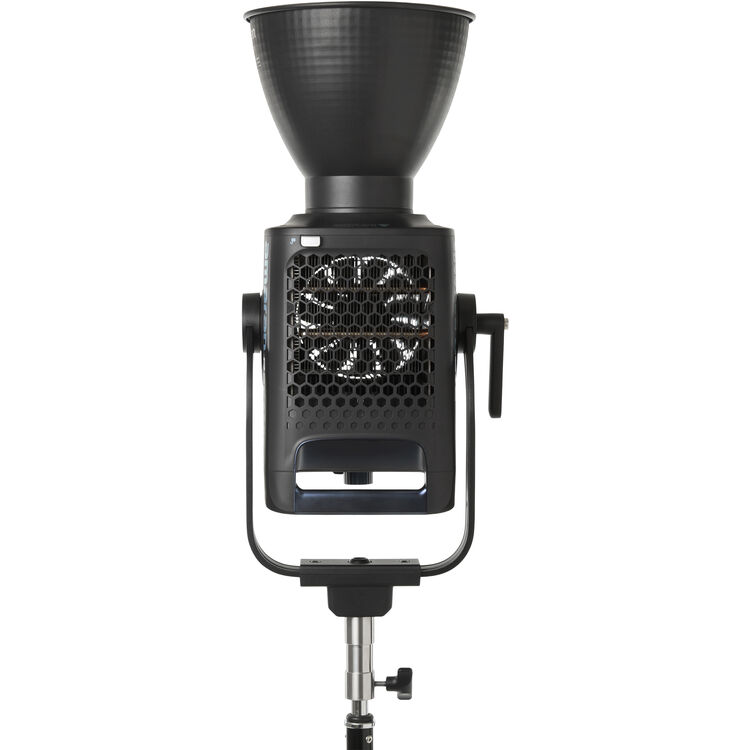

Amaran Ray 660c RGB LED Monolight

The Amaran Ray 660c RGB LED Monolight is amaran’s most powerful full-color COB fixture, delivering 660W of professional studio output. Designed for demanding creators, filmmakers, and large studio setups, it features OmniColor technology, IP54 dust and splash resistance, integrated AC power, and wide control options including app, onboard, NFC, and optional DMX via USB-C.

The Ray 660c offers an extended 1800–20,000K CCT range, 360° RGB and HSI modes, built-in lighting effects, and Bowens mount compatibility for extensive light-shaping flexibility. Its all-in-one body design eliminates power bricks, enabling fast setups and cleaner studio workflows.

Key Features

Powerful Studio Output

• Bare output: 38,500 lux at 3.3 ft (4300K)

• With included reflector: 91,600 lux at 3.3 ft

• Total luminous flux: 45,904 lumens

• Professional color accuracy: CRI 95, TLCI 95, SSI 80/87, TM-30 94/100

• Ideal for subjects, large sets, and high-output environments

Full RGB Color Control

• OmniColor engine for enriched red/blue spectrum

• CCT range: 2300–10,000K, expandable to 1800–20,000K in CCT+

• Smooth 0–100% stepless dimming

• Full 360° HSI and RGB control

• 12 FX modes: fireworks, faulty bulb, lightning, TV, pulsing, strobe, explosion, fire, paparazzi, welding, cop car, party

Adaptive Control

• Quick Operation mode for fast adjustments

• Customizable shortcuts (long-press & double-click)

• High-Speed Photography & Studio modes

• Intuitive onboard menu with TFT display

• FlowTurn tactile control knob

• NFC one-tap pairing + app control via Bluetooth (up to 262.5 ft range)

Optional DMX Integration

• Supports optional USB-C to 5-pin DMX adapter

• Ideal for advanced lighting consoles & synchronized multi-light workflows

Integrated AC Power

• First 660W full-color COB in its class with built-in power supply

• Clean, clutter-free setups

• Single 16.4 ft AC cable operation

Durable IP54 Design

• Dust and splash resistant for demanding environments

• Quiet 28 dBA cooling with silent/smart fan modes

Mounting & Compatibility

• Full-size metal Bowens mount

• Compatible with included reflector and optional Fresnel

• Strong yoke design for precise tilt adjustments

• Dual junior/baby pin receiver

• Built-in safety chain bracket

Specifications

• Power Output: 660W

• Color Temperature: 2300–10,000K (1800–20,000K in CCT+)

• Color Accuracy: CRI 95, TLCI 95, SSI 80/87

• Brightness: Up to 91,600 lux at 3.3 ft

• Dimming: 0–100%

• Control: Onboard, App, NFC, Bluetooth, Optional DMX via USB-C

• Mount Type: Bowens

• Cooling Noise: 28 dBA

• Weather Rating: IP54

• Cable Length: 16.4 ft AC power cable

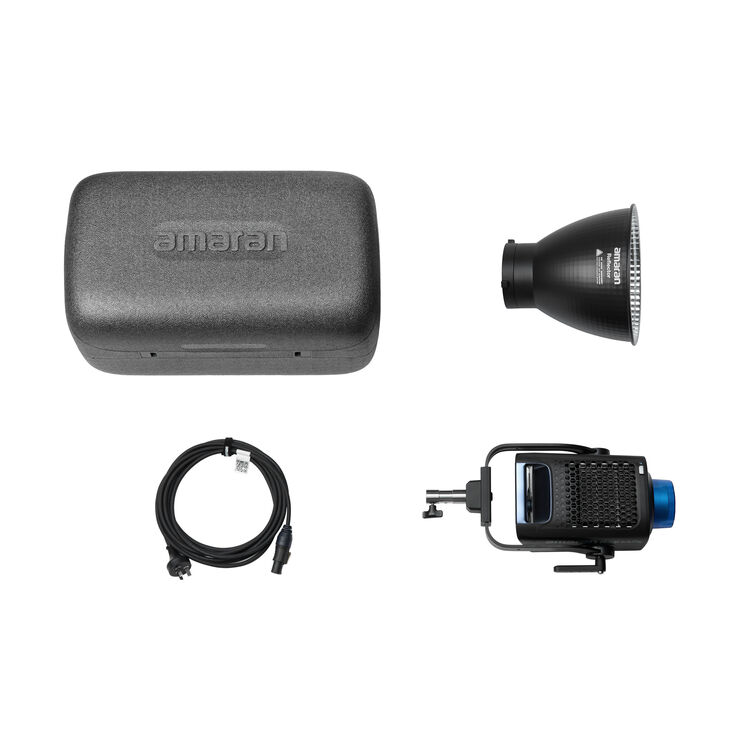

What’s in the Box

• Amaran Ray 660c RGB LED Monolight

• Reflector

• 16.4 ft AC Power Cable

• Blue Bowens Mount Protection Cover

• Carry Bag

• Limited 1-Year Manufacturer Warranty
