DJI SDR Transmission Combo

The DJI SDR Transmission Combo is a professional-grade wireless video system designed for small-to-medium film sets. Using tri-band SDR technology, it transmits 1080p60 video up to 1.9 miles with ultra-low latency (35ms), supporting unlimited receivers, metadata passthrough, and real-time camera control.

Key Features

1. Robust Long-Range Transmission

• 1.9-Mile Range: Reliable 1080p60 video up to 10,000’ using DFS/2.4GHz/5.8GHz bands.

• 35ms Low Latency: Near-instant monitoring for precise framing and focus.

• Auto-Frequency Hopping: Avoids interference in crowded RF environments.

2. Professional Monitoring Tools

• Unlimited Receivers: Broadcast mode supports endless monitoring devices.

• Metadata Support: Displays ARRI/RED camera data (aperture, ISO, etc.) on receivers.

• App Integration:

  • LUTs, waveform, false color for on-set grading.

  • Local recording & playback for review.

3. Seamless Control & Communication

• Camera/Gimbal Control: Adjust settings via app (PTP for Canon/Nikon, CEC for Sony).

• Voice Call: Real-time communication between transmitter and receiver.

• Camera Switching: Monitor multiple sources instantly in Broadcast mode.

4. Flexible Power & Mounting

• USB-C or L-Series Battery Power: Compatible with DJI gimbals (RS 4 Pro/RS 3 Pro) for integrated power.

• Gimbal Adapter Included: Mounts directly to DJI stabilization systems.

5. Multi-Device Outputs

• Transmitter Outputs: 3x SDR + 2x Wi-Fi signals simultaneously.

• Receiver Outputs: SDI/HDMI to monitors, USB-C to smartphones/tablets.

Specifications

• Max Resolution: 1080p60

• Max Bitrate: 20 Mb/s

• Range: 1.9 miles (10,000’)

• Latency: 35ms

• Frequency Bands: DFS, 2.4GHz, 5.8GHz

• Power Options: USB-C PD, L-series batteries, gimbal-powered

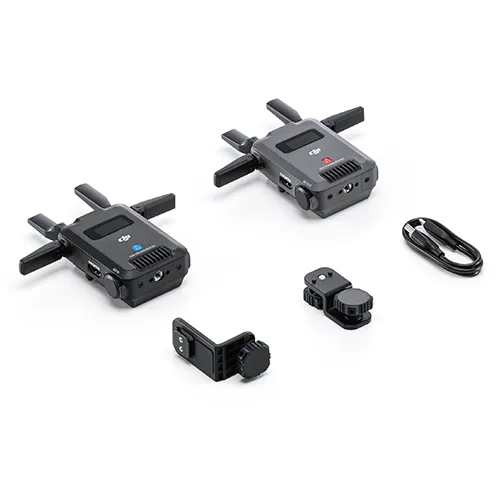

Included in the Combo

• SDR Transmission Transmitter

• SDR Transmission Receiver

• Gimbal Mounting Adapter Plate

• Transmitter Camera Mounting Adapter

• USB-A to USB-C Cable (16.9”)

• 1-Year Warranty (Each Unit)

Why Choose the SDR Transmission System?

• Crowd-Proof Reliability: Tri-band frequency hopping avoids Wi-Fi congestion.

• Cinema-Grade Integration: Metadata support for ARRI/RED workflows.

• Scalable Monitoring: Unlimited receivers for large crews.

Ideal for film sets, documentary teams, and live event coverage requiring robust, low-latency wireless video with professional controls.
